Magnum Hydraulic Wire Winder

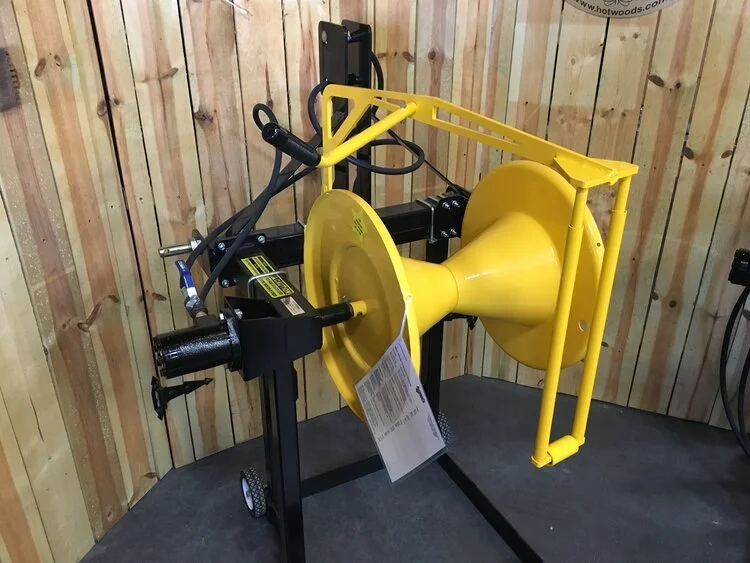

Magnum 3 point wire winder shown with optional manual wire guide. Dual reels end to end assure extra capacity for those bigger jobs.

Magnum shown with optional manual wire guide. The wire guide can be added for $129.00

The Magnum winder uses a shaft carrier plate on the end of the shaft to help carry the load of the double reel capacity.

 Bearing can be greased to assure many years of trouble free, fencing.

End plate removes with (2) 5/8" nuts close to the tool bar when you need to remove for unloading wire from reel.

The Magnum winder from the motor side. Each Magnum comes with the double spool reel setup.

This unit was designed for the guy who is rolling larger amounts of wire to keep, or to roll multiple strands to dispose of.

The Pro-Tatch Magnum winder uses 2 of our coned reels facing each other to give you double the capacity when rolling wire. Shown with optional manual wire guide.

This photo shows, how your hydraulic wire winder should look, when everything is assembled correctly and the unit is ready to go to work.

Always make sure the Lovejoy coupler and rubber spyder gear, between the drive shaft and motor mount, are true to each other. This will assure smooth operating, while rolling wire.

The latest designed, 3 point mount magnum completely assembled, set up for category 2.

We do not supply tips on the hose's.

This is the complete magnum winder unassembled

Roll multiple strands with our all new
3 Point Magnum Series Wire Winder.

 This unit is designed to pull 1 to 4 strands at once. Works with smooth or barbed wire.

 Excellent for those big cleanup jobs where saving the wire is not important.

 Need to roll up a full mile of barbed wire? Or two miles of smooth wire? This unit will get the job done.

 UPS Shippable ( ships unassembled ) Takes less than 20 minutes to assemble.

Magnum Hydraulic Wire Winder


Performs exactly like our 3 point mount Magnums, but with a different mount. This uses a 16" square 1/4" plate with 4 1/2" mounting holes punched, one in each corner that can be adapted to mount on many different applications.

We see many of these being used on skid loaders, bolted to buckets of loaders, flatbeds on pickups etc. This is a great unit to be used as a cleanup winder also. The reel splits in the center by pulling it apart after the reel is full.

 4 tie wire locations on the reel for easy unloading and securing the roll before splitting the reel and pulling the wire off the cone.

 3/4" bearing on bearing carrier plate keeps everything level and prevents damage to shaft, due to having to much weight on the reel when it is full of wire.

 End plate removes easily when you are ready to unload a full reel of wire.

UPS shippable

Magnum Universal Mount


Solid Reels

All 3 solid reels shown are UPS shippable.

Designed to be used on high tensile, its 8” center you will not roll the high tensile wire as tight, in a small coil when rolling. Capacity is 1 mile of wire. The outside diameter of this reel is 20".

The 4” center standard reel measures 20” in diameter with a 4" center, and is designed to be used on any type of wire. It will comfortably hold 1 mile of smooth or 1/2 mile of barbed wire.

The 4” mini solid reel is 12” in diameter with a 4" center, designed to hold smooth or barbed wire. It will comfortably hold 1/2 mile smooth wire.

All 3 designs are manufactured of steel with baked on powder coat finish.

This 4" mini spool, is designed to be used on all Pro-Tatch wire winders just like our other solid reels.

It will comfortably hold 1/2 mile smooth wire. It can also be used to roll barbed wire as well.

Very easy to handle and store. All steel construction to last for years of use.

All reels are UPS shippable.

SOLID REEL PART NUMBERS & DIMENSIONS

NS-1752 (4"MINI):           12" outside diameter with 4" center

NS-1754 (4" CENTER):     20" outside diameter with 4" center

NS-1758 (8" CENTER):     20" outside diameter with 4" center

All of our winders (excluding the GAS POWERED and HIGH TENSILE) ship for free.

Gas powered and high tensile units ship palletized, truck freight. ( All other units are UPS shippable)

We do not ship wire winder ACCESSORIES for free. Please contact us to determine shipping charges on any accessories that may include such items as solid reels, wire guides or any extra parts and accessories you may want to order, call 1-877-407-8645.

Solid Reel

Call toll free 877-407-8645 for questions or to order your wire winder or accessories.

Optional arm designed for unrolling new rolls of wire.  This arm can be added to any Pro-Tatch 3 point wire winder, new or old.  Easily adapted to ATV's, Pickups, etc. This unit is not intended to be used as any type of tool to roll wire, only to unroll new rolls of wire. UPS shippable

Optional arm designed for unrolling new rolls of wire.
This arm can be added to any Pro-Tatch 3 point wire winder, new or old.
Easily adapted to ATV's, Pickups, etc.

This unit is not intended to be used as any type of tool to roll wire, only to unroll new rolls of wire.

UPS shippable

Optional Arm
